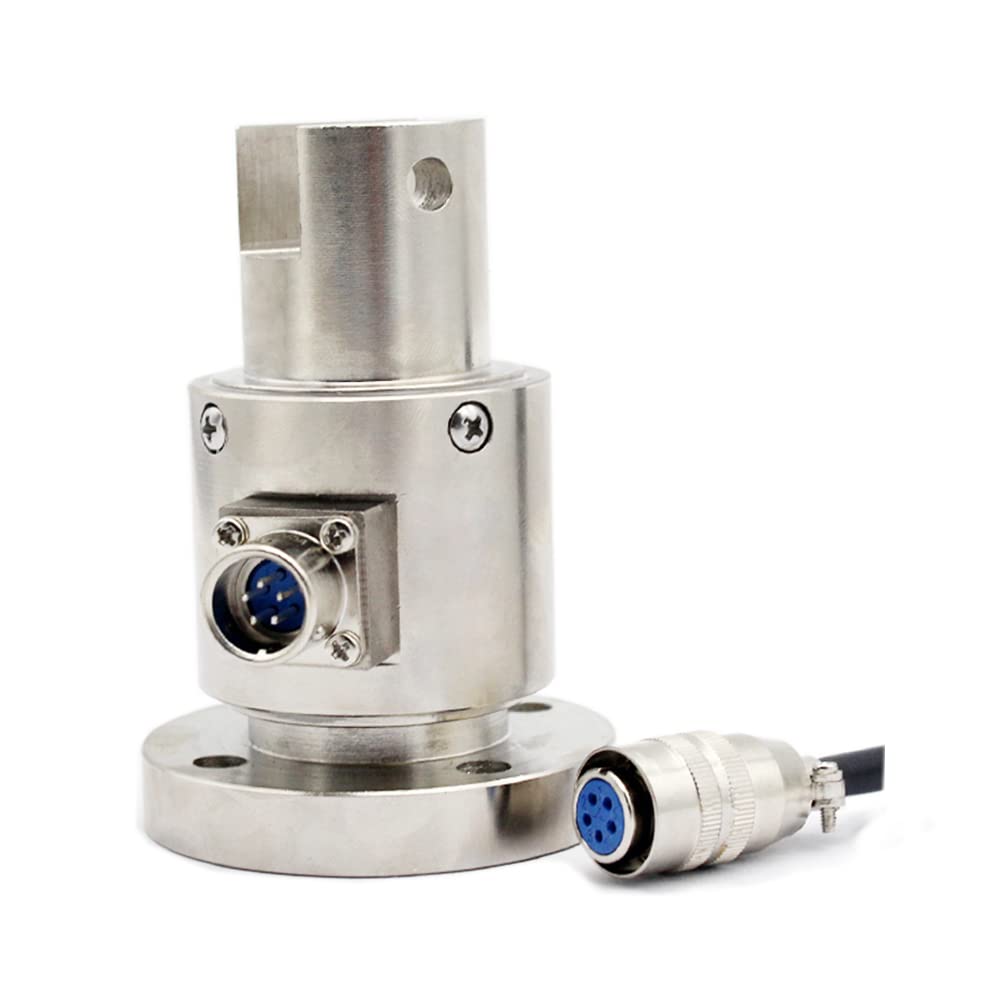

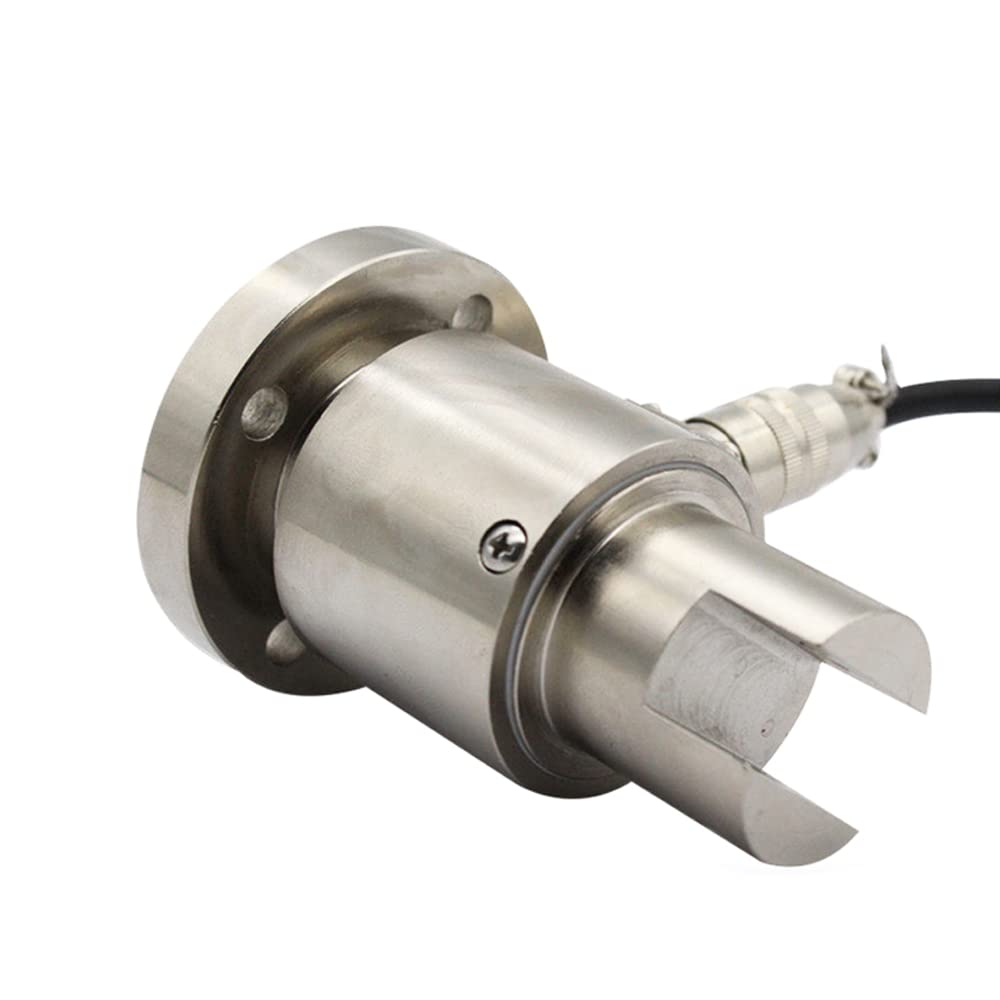

ATO Reaction Torque Sensor 5-200 Nm with 0-20 mV Output Signal | IP65 Rated (100 Nm Capacity) | Precision Torque Wrench Calibration Tool for Automotive, Industrial and Laboratory Applications

Product Description

ATO Reaction Torque Sensor Features: Shipping weight: 4.4lbsSensitivity: 1.0-2.0mV/VOperating temperature: -20℃~+80℃Safety overload: 120%F.SUltimate overload: 150%F.SExcitation voltage: DC 5-15VMaterial: Alloy steelProtection class: IP65 Reminder: After purchasing one ATO torque sensor, you can buy a special digital panel meter to obtain readings directly, or buy a transmitter to output standard signal to PLC, DCS and other systems. Customized output signal is 0~5V, 0~10V, 0~±10V, or 4-20mA. 5Nm Torque Sensor 10Nm Torque Sensor 20Nm Torque Sensor 30Nm Torque Sensor Add to Cart Add to Cart Add to Cart Add to Cart Customer Reviews — — — — Price $165.99$165.99 $165.99$165.99 $165.99$165.99 $165.99$165.99 Capacity 5 Nm 10 Nm 20 Nm 30 Nm Output Signal 0-20mV 0-20mV 0-20mV 0-20mV 50Nm Torque Sensor 100Nm Torque Sensor 200Nm Torque Sensor Add to Cart Add to Cart Add to Cart Customer Reviews — — — Price $165.99$165.99 $165.99$165.99 $165.99$165.99 Capacity 50Nm 100Nm 200 Nm Output Signal 0-20mV 0-20mV 0-20mV Specification: Capacity range * 0-5 Nm ~ 0-200 Nm Output signal * DC 0-20mV, or purchase load cell amplifier ATO-LCTR-OAR for output signal DC 4-20mA, DC 0-5V, DC 0-10V, RS485 Sensitivity 1.0-2.0mV/V Zero balance ±2%FS Non-linearity 0.05%FS Repeatability 0.05%FS Creep 0.05%FS/30min Temperature drift on zero ＜0.05%F.S/10℃ Temperature effect on output ＜0.05%F.S/10℃ Humidity 0~90%RH Impedance 750Ω Insulation resistance ≥5000MΩ/100VDC Stability 0.3%FS/year Electrical connection 5 pin circular connector (Packing included) Cable length 3m (Φ3mm) (Packing included) Wiring EXC+: Red, EXC-: Black, SIG+: Green, SIG-: White ATO Strain gauge torque sensor adopts strain electric measurement technology. A strain gauge is attached to the elastic shaft to form a measuring bridge. When the elastic shaft is slightly deformed by torque, the resistance value of the bridge will change, and the change of strain bridge resistance will change into the change of electrical signal to achieve torque measurement. The sensor completes the following information conversion, such as the sensor consists of elastic shaft, measuring bridge, instrument amplifier and interface circuit. Note： Default Output signal: DC 0-20mV, if you want output signal: DC 4-20mA, DC 0-5V, DC 0-10V, RS485, please purchase a load cell amplifier: ATO-LCTR-OAR use together. 4-20mA load cell amplifier 0-10V load cell amplifier RS485 load cell amplifier Add to Cart Add to Cart Add to Cart Customer Reviews 4.0 out of 5 stars 8 4.0 out of 5 stars 8 4.0 out of 5 stars 8 Price $109.10$109.10 $109.70$109.70 $109.70$109.70 load cell amplifier ✓ ✓ ✓ Output Signal 4-20mA 0-10V RS485
